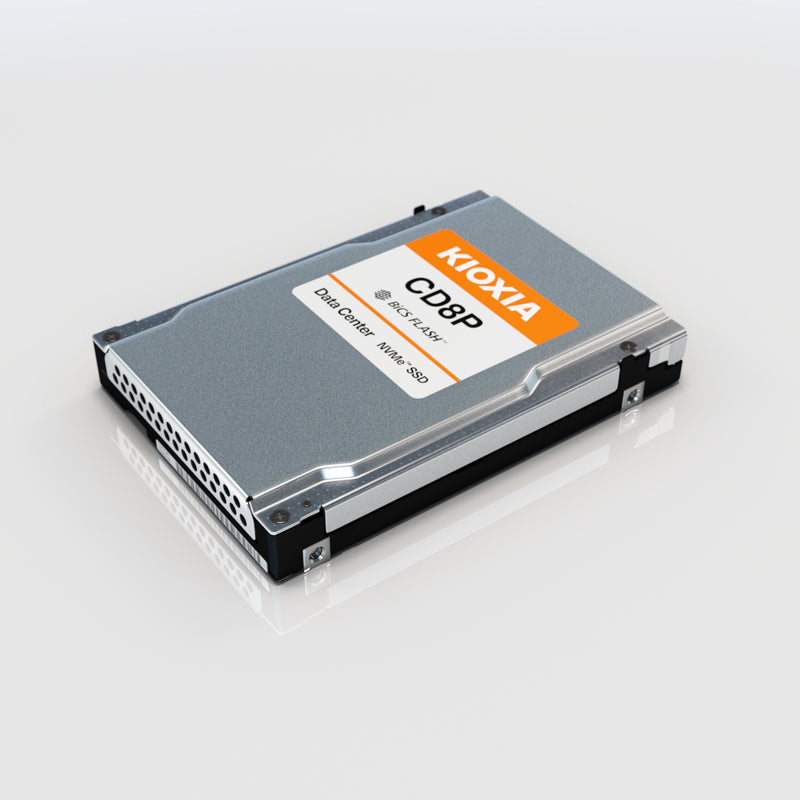

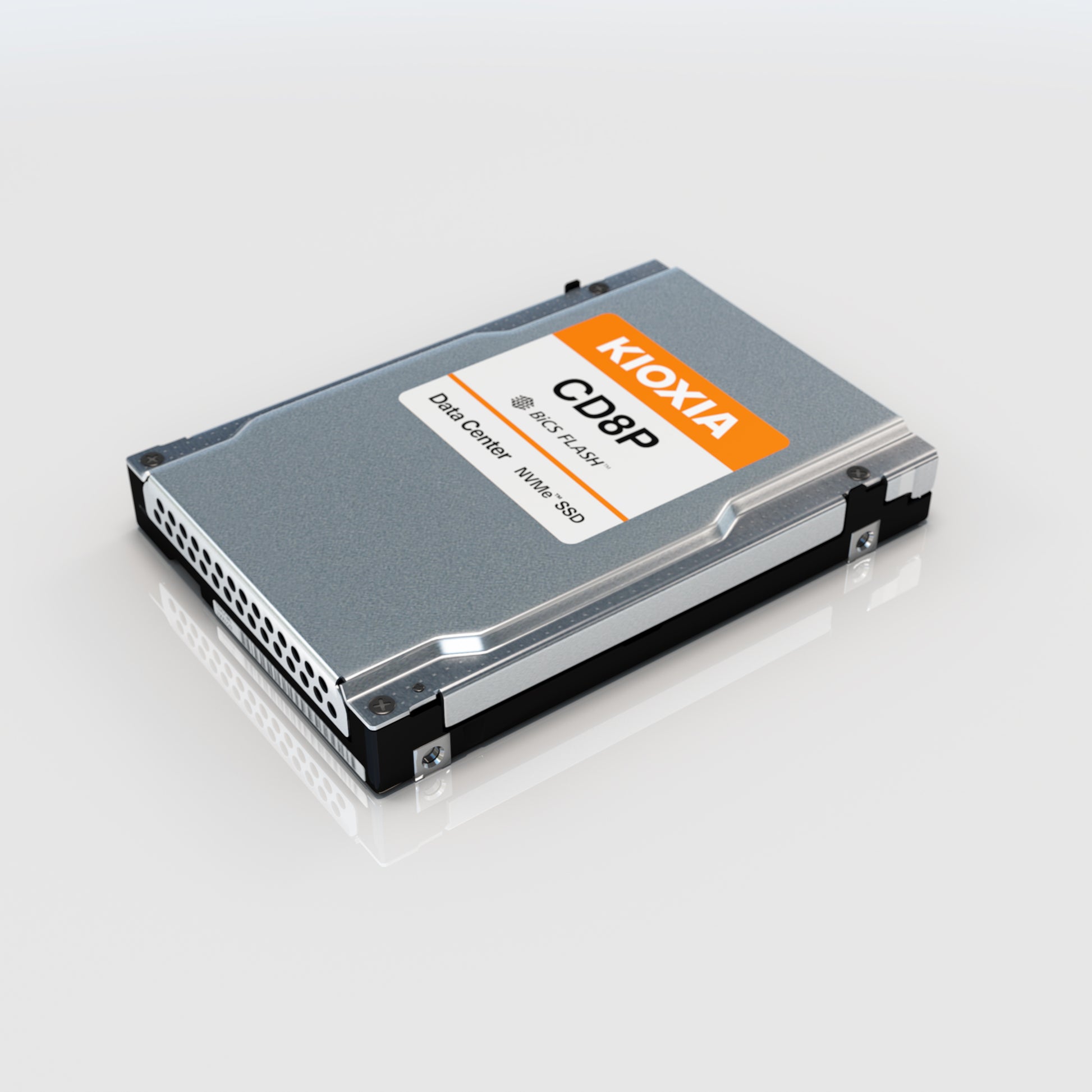

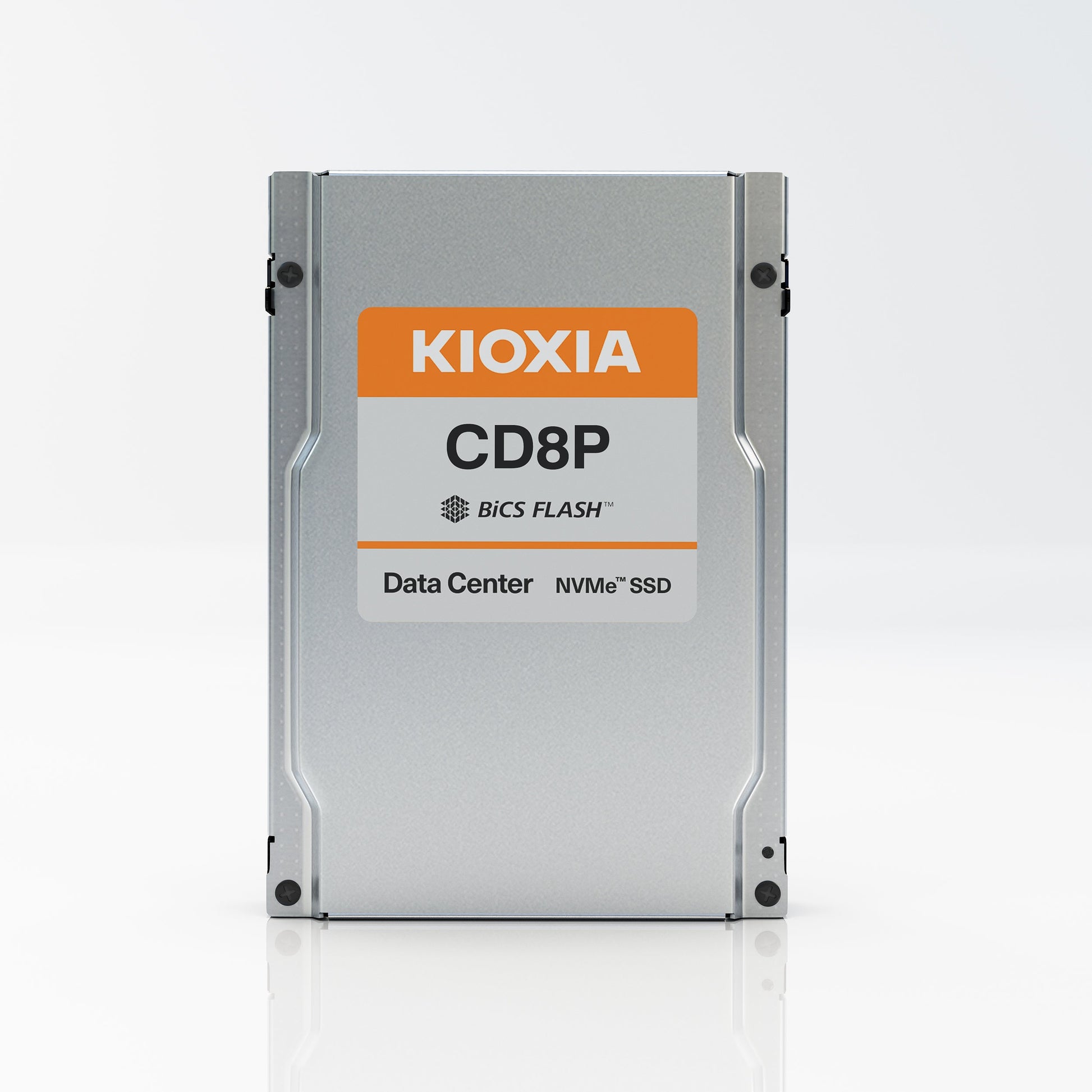

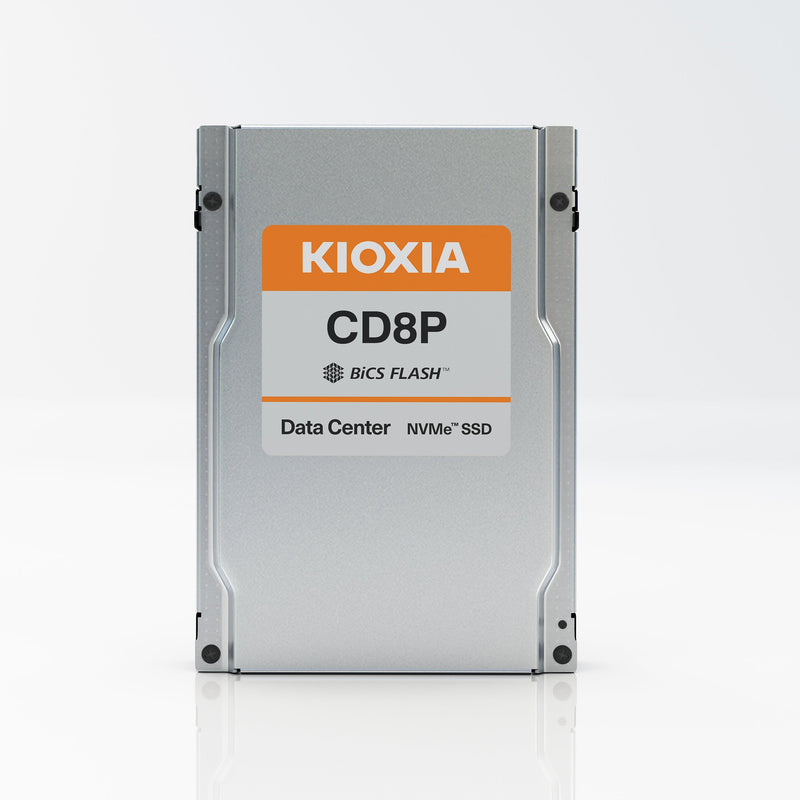

KIOXIA CD8P-R (2.5") - 30.72TB Data Centre 1 DWPD PCIe 5.0 SSD
Transform your data centre with the KIOXIA CD8P-R Series 30.72TB SSD, a high-capacity data centre NVMe SSD designed for hyperscale applications. Driven by PCIe 5.0 and NVMe 2.0 with BiCS FLASH generation 5 TLC, this 2.5" U.3 SSD achieves up to 9,770 MB/s sequential read and 4,790 MB/s sequential write speeds, with 1,600K IOPS random read performance. Offering 1 DWPD endurance and Sanitise Instant Erase (SIE) protection, it enhances big data/IoT, online transaction processing, and virtualisation. Single-port design optimised for data centre class workloads supports high availability for continuous hyperscale operations.
Product Specification for KIOXIA CD8P-R (2.5") - 30.72TB Data Centre 1 DWPD PCIe 5.0 SSD
Performance (Up To)
| Sustained 128 KiB Sequential Read | 10,000 MB/s |
| Sustained 128 KiB Sequential Write | 4,900 MB/s |
| Sustained 4 KiB Random Read | 1,600K IOPS |
| Sustained 4 KiB Random Write | 150K IOPS |
Power Requirements
| Supply Voltage | 12 V ± 10 %, 3.3 V ± 15 % |
| Power Consumption (Active) | 24 W typ. |
| Power Consumption (Ready) | 5.5 W typ. |
Reliability
| MTTF | 2,500,000 hours |
| Warranty | 5 years |
| DWPD | 1 |
Dimensions
| Thickness | 15 mm +0 / -0.5 mm |
| Width | 69.85 mm ± 0.25 mm |
| Length | 100.45 mm Max |
| Weight | 130 g Max |
Environmental
| Temperature (Operating) | 0 °C to 72 °C |
| Temperature (Non-operating) | -40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s² ( 2.17 Grms ) ( 5 to 800 Hz ) |
| Shock (Operating) | 9.8 km/s² ( 1,000 G ) ( 0.5 ms ) |
أداء سريع وفعال وموثوق.
سرعات PCIe® 5.0 فائقة السرعة
استمتع بنقل البيانات بشكل أسرع واستجابة النظام.
طاقة أقل وكفاءة عالية
يوفر أداءً قويًا مع تقليل استخدام الطاقة.
موثوقية المؤسسة على مدار الساعة طوال أيام الأسبوع
تم تصميمه لتحمل بيئات العمل المستمرة والمتطلبة.
