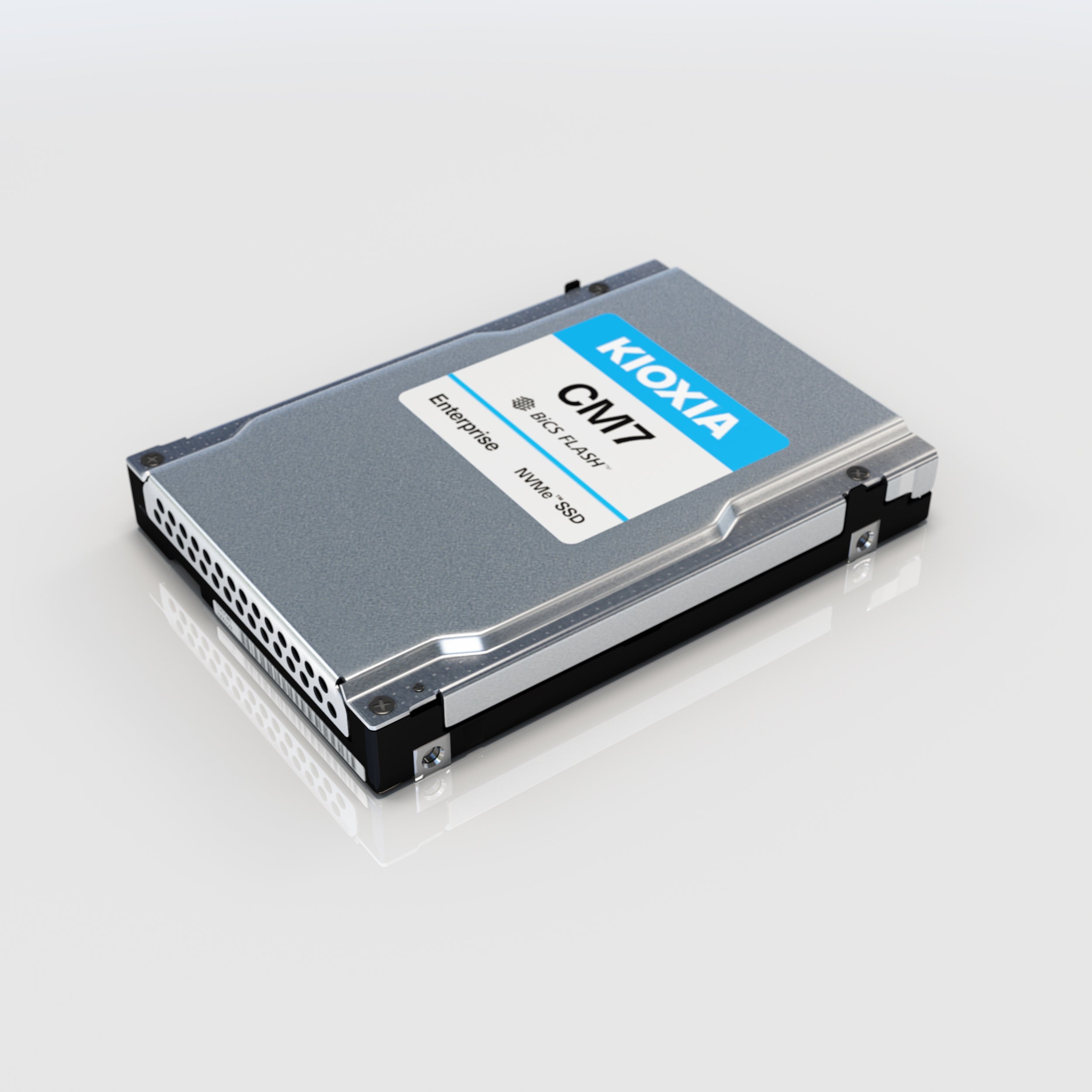

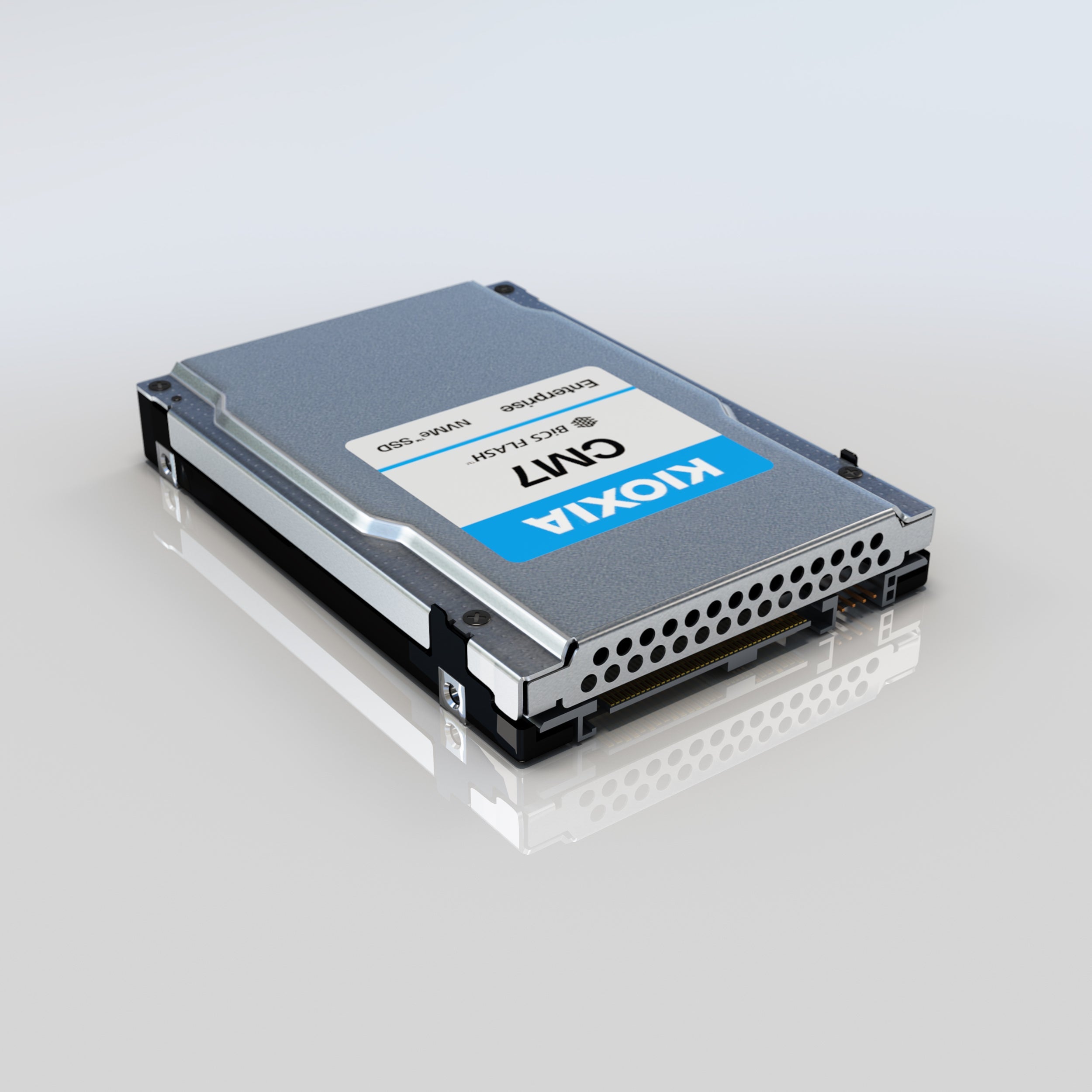

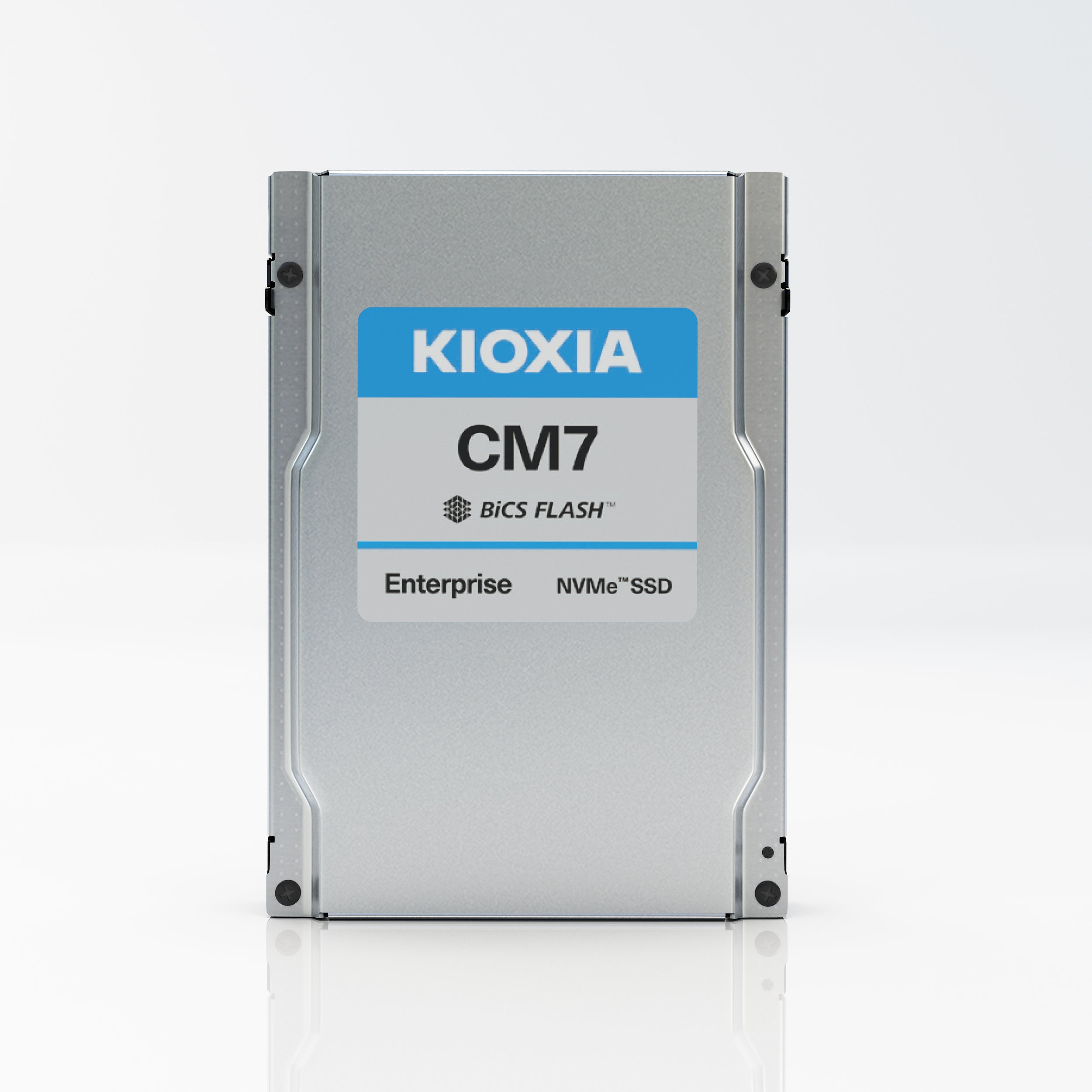

KIOXIA CM7-R 30.72TB Read Intensive PCIe 5.0 SSD

Revolutionise your enterprise with the KIOXIA CM7-R 30.72TB SSD, perfect for read-intensive workloads!

KIOXIA /

1.92 TB 3.84 TB 7.68 TB 15.36 TB 30.72 TB

U.3

Base SIE SED

متغيرات المنتج:

We won't be beaten on price. Request a quote.

Capacity

1.92 TB

3.84 TB

7.68 TB

15.36 TB

30.72 TB

Basic Specifications

Form Factor

U.3 (2.5-inch) 15mm

Interface

PCIe 5.0x4, NVMe 2.0

Flash Memory Type

112-Layer BiCS FLASH TLC 3D NAND

Endurance Rating

Read-Intensive - 1 DWPD

Performance (Up To)

Sequential Read

14,000 MB/s

10,000 MB/s

Sequential Write

3,500 MB/s

6,750 MB/s

7,000 MB/s

6,750 MB/s

4,900 MB/s

Random Read (4K)

2,000K IOPS

2,700K IOPS

2,450K IOPS

2,400K IOPS

1,600K IOPS

Random Write (4K)

155K IOPS

310K IOPS

300K IOPS

150K IOPS

Power Requirements

Power Loss Protection

Yes

Max Average Active Power

22 W typ.

25 W typ.

Idle Power (Ready)

5 W typ.

5.5 W typ.

Supply Voltage

12 V ± 10%, 3.3 V ± 15%

Reliability / Endurance

DWPD (5-year)

1.0

Total Bytes Written (5-year)

3.5 PBW

7.0 PBW

14.0 PBW

28.0 PBW

56.1 PBW

Warranty

5 years

MTTF

2,500,000 hours

Dimensions

Form Factor

U.3 (2.5-inch)

Thickness

15.0 mm

Width

69.85 mm

Length

100.45 mm Max

Weight

130 g Max

Environmental

Temperature (Operating)

0 °C to 76 °C

0 °C to 73 °C

0 °C to 72 °C

Temperature (Non-operating)

-40 °C to 85 °C

Humidity (Operating)

5% to 95% R.H.

Security & Management

NVMe Specification

NVMe 2.0

PCIe Specification

PCIe 5.0

OCP Compliance

OCP Datacenter NVMe SSD v2.0 support

Dual-Port Support

Yes (for high availability)

Security Options

SIE, SED (TCG Opal/Ruby), FIPS SED

SFF-TA-1001

Conformant (U.3)

More Information

Revolutionise your data centre with the KIOXIA CM7-R Series, an enterprise-grade NVMe SSD family built for read-intensive workloads and hyperscale environments. Powered by PCIe 5.0 and NVMe 2.0 with 112-layer BiCS FLASH TLC, the CM7-R Series delivers exceptional performance‚ offering up to 14,000 MB/s sequential read, 6,750 MB/s sequential write, and up to 2,700K IOPS random read across capacities from 1.92 TB to 30.72 TB. Designed with 1 DWPD endurance and power loss protection (PLP), these SSDs excel in cloud deployments, big data analytics, AI inference, streaming media, and virtualised environments. The dual-port architecture ensures continuous availability and enterprise-class reliability, making the CM7-R Series ideal for large-scale storage, business intelligence, and other mission-critical applications.
