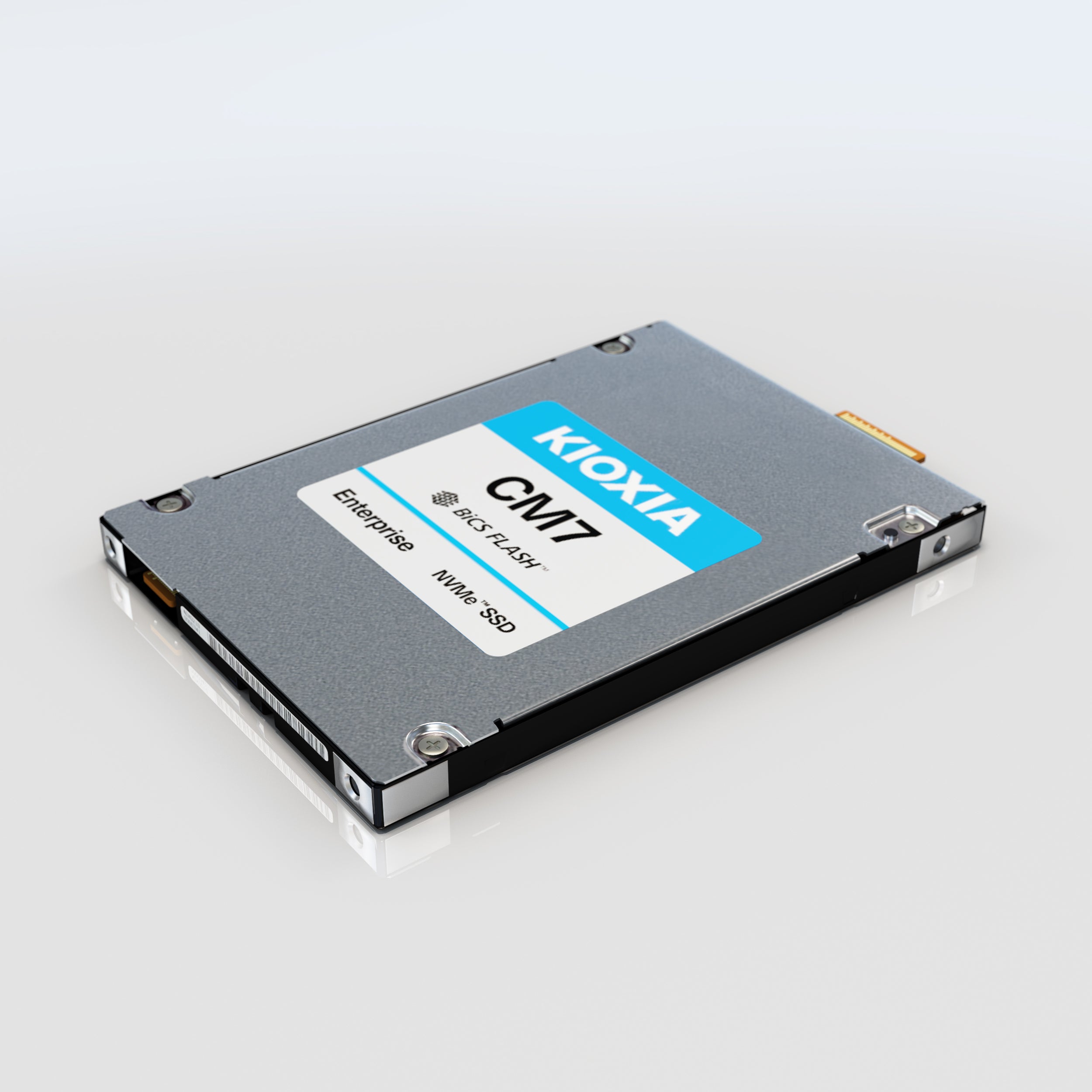

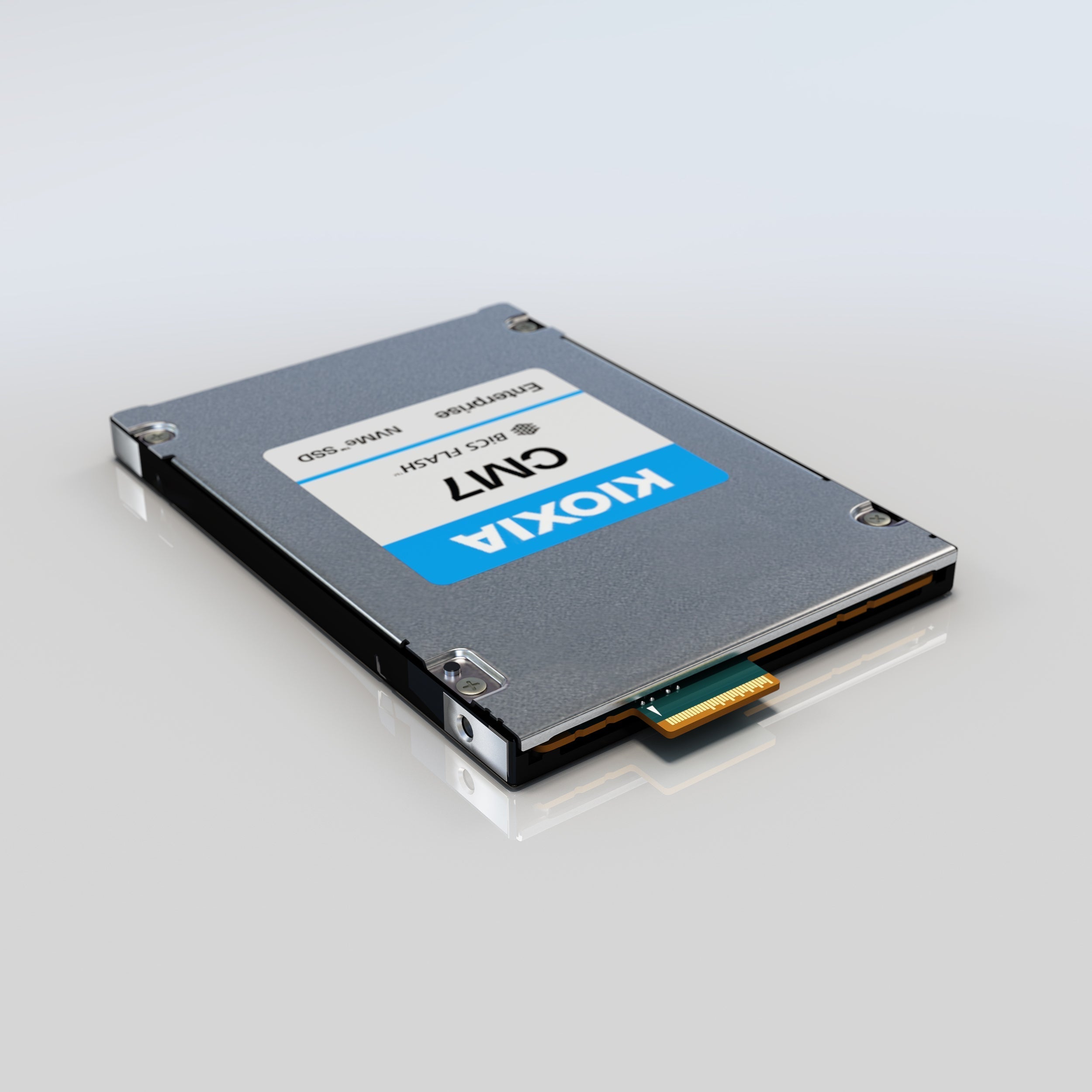

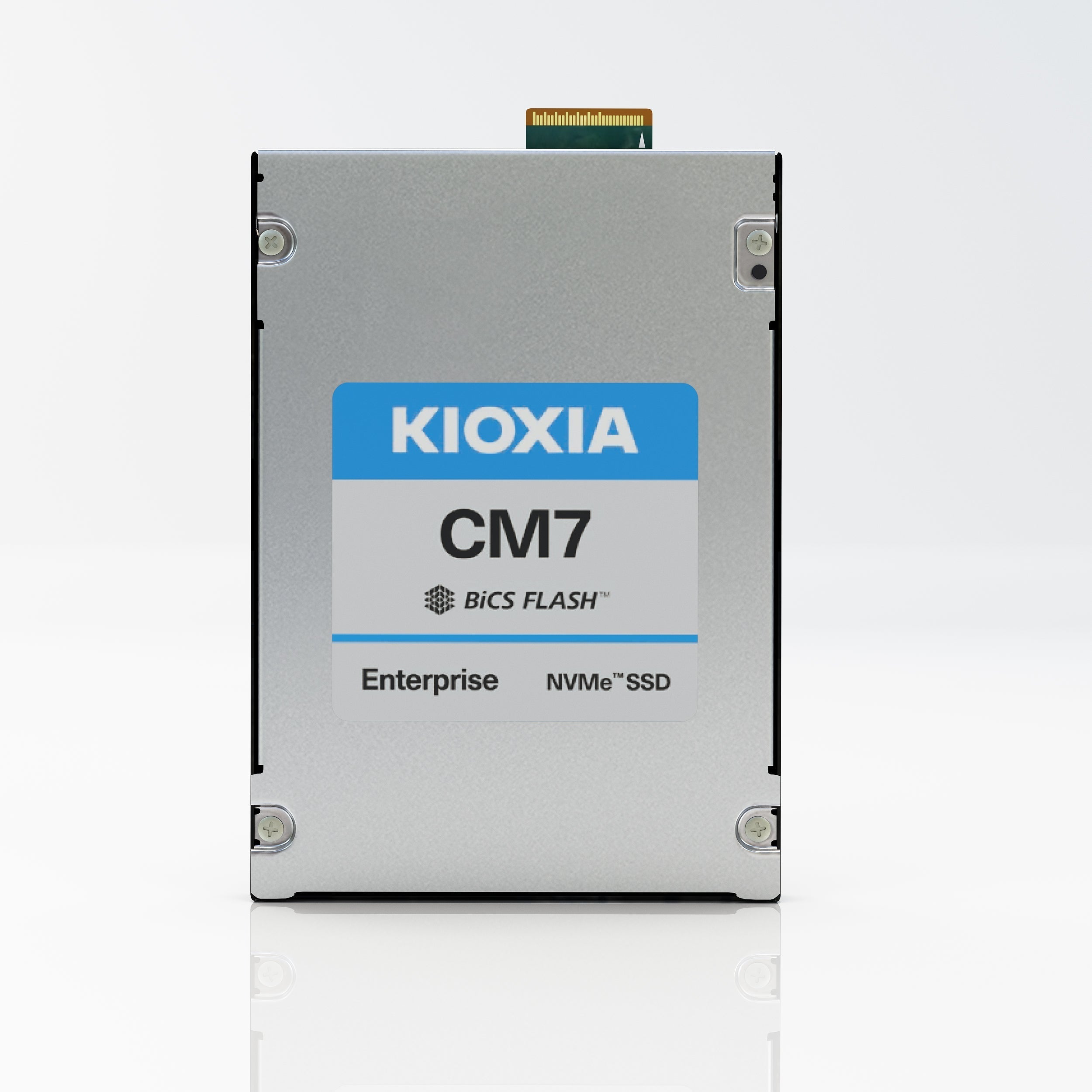

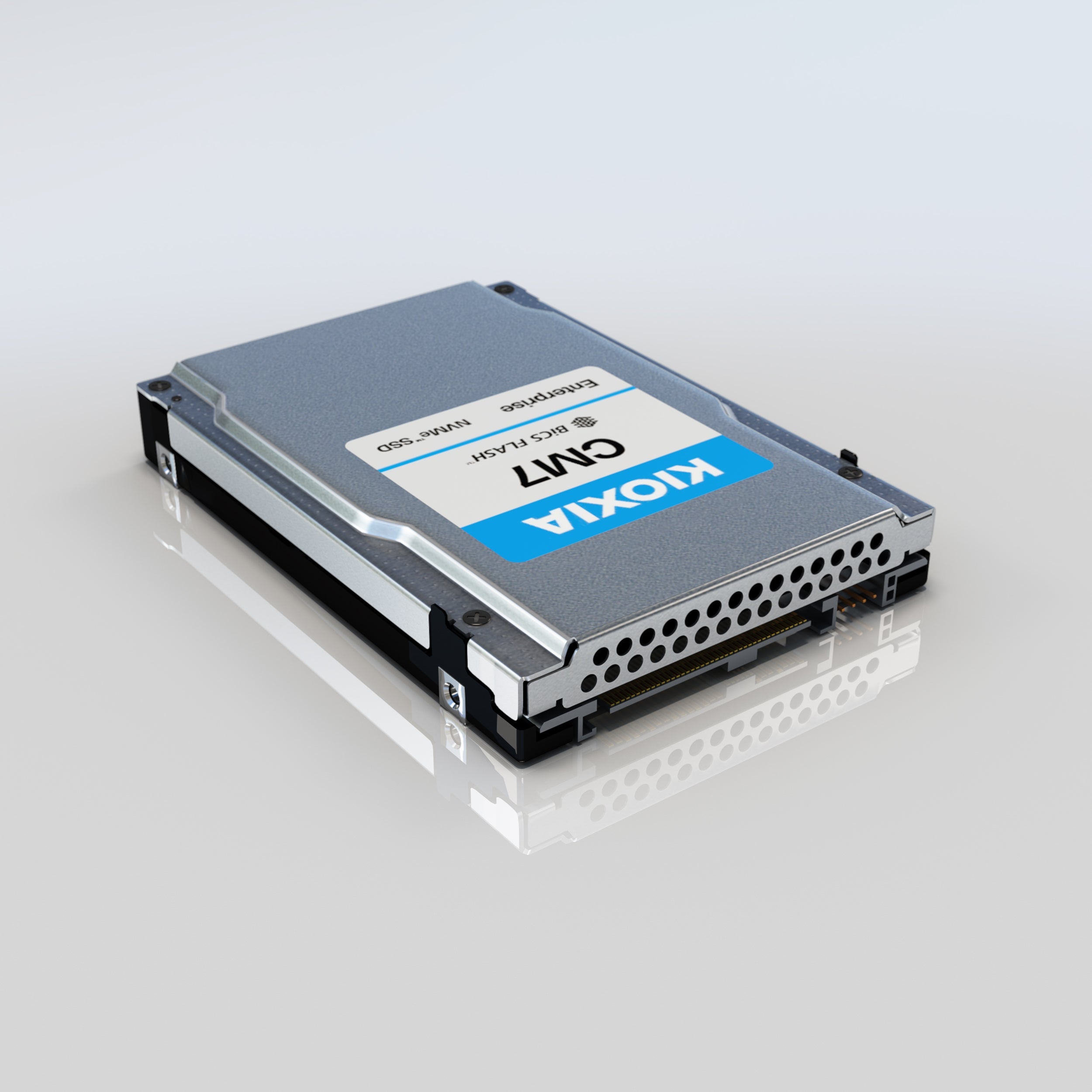

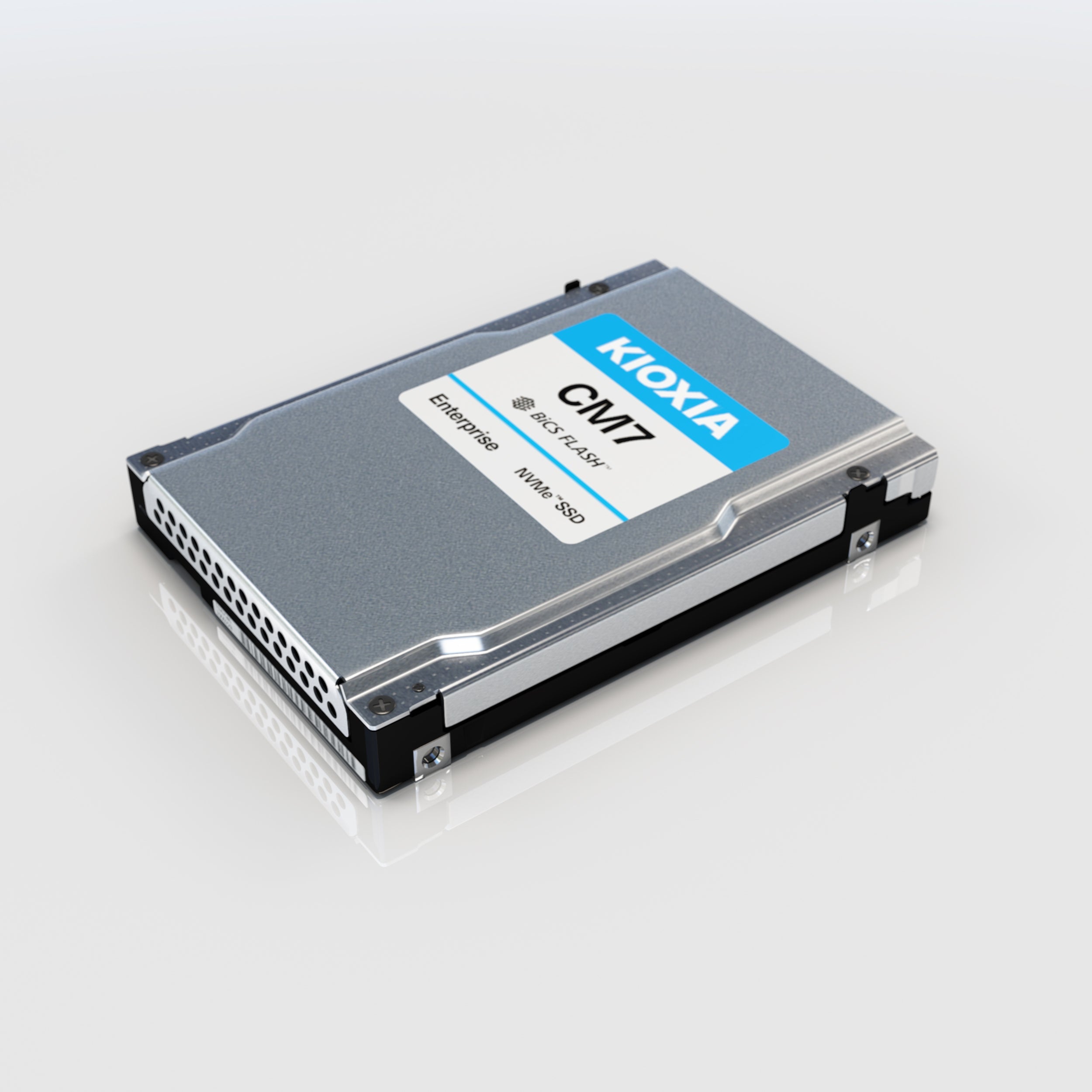

KIOXIA CM7-V 12.8TB Mixed Use PCIe 5.0 SSD

Transform your hyperscale with the KIOXIA CM7-V 12.8TB SSD, perfect for mixed-use workloads!

KIOXIA /

1.6 TB 3.2 TB 6.4 TB 12.8 TB

U.3 E3.S (7.5mm)

Base SIE SED

متغيرات المنتج:

We won't be beaten on price. Request a quote.

Capacity

1.6 TB

3.2 TB

6.4 TB

12.8 TB

Basic Specifications

Form Factor

E3.S (7.5mm)

Interface

PCIe 5.0 ×4, NVMe 2.0

Flash Memory Type

112-layer BiCS FLASH TLC 3D NAND

Endurance Rating

Mixed-Use – 3 DWPD (5 years)

Performance (Up To)

Sequential Read (128 KiB)

13,000 MB/s

14,000 MB/s

Sequential Write (128 KiB)

3,500 MB/s

5,300 MB/s

6,750 MB/s

Random Read (4 KiB)

2,000K IOPS

2,450K IOPS

2,700K IOPS

2,000K IOPS

Random Write (4 KiB)

310K IOPS

470K IOPS

550K IOPS

600K IOPS

Power Requirements

Power Loss Protection

Yes (capacitor-based PLP)

Active Power (Typical)

21–25 W

Idle Power (Ready)

5 W

Reliability / Endurance

DWPD (5-year)

3.0

DWPD (3-year)

4.98

Total Bytes Written (5-year)

8.76 PBW

17.52 PBW

35.04 PBW

70.08 PBW

Warranty

5 years

MTTF

2,500,000 hours

UBER

Tested to 1E-18 (100× higher than JEDEC spec)

Dimensions

Form Factor

E3.S (Enterprise 7.5mm)

Thickness

7.5 mm

Environmental

Temperature (Operating)

0 Â°C to 73 Â°C

Temperature (Non-operating)

-40 Â°C to 85 Â°C

Security & Management

NVMe Specification

NVMe v2.0

OCP Compliance

OCP Datacenter NVMe SSD v2.0 support

Encryption

TCG Opal & Ruby SSCs (on SED models)

FIPS Certification

FIPS 140-3 Level 2 certifiable

Capacity

1.6 TB

3.2 TB

6.4 TB

12.8 TB

Basic Specifications

Form Factor

U.3 (2.5-inch, 15mm)

Interface

PCIe 5.0 ×4, NVMe 2.0

Flash Memory Type

112-layer BiCS FLASH TLC 3D NAND

Endurance Rating

Mixed-Use – 3 DWPD (5 years)

Performance (Up To)

Sequential Read (128 KiB)

13,000 MB/s

14,000 MB/s

Sequential Write (128 KiB)

3,500 MB/s

5,300 MB/s

6,750 MB/s

Random Read (4 KiB)

2,000K IOPS

2,450K IOPS

2,700K IOPS

2,000K IOPS

Random Write (4 KiB)

310K IOPS

470K IOPS

550K IOPS

600K IOPS

Power Requirements

Power Loss Protection

Yes (capacitor-based PLP)

Active Power (Typical)

21–25 W

Idle Power (Ready)

5 W

Reliability / Endurance

DWPD (5-year)

3.0

DWPD (3-year)

4.98

Total Bytes Written (5-year)

8.76 PBW

17.52 PBW

35.04 PBW

70.08 PBW

Warranty

5 years

MTTF

2,500,000 hours

UBER

Tested to 1E-18 (100× higher than JEDEC spec)

Dimensions

Form Factor

U.3 (2.5-inch)

Thickness

15 mm

Environmental

Temperature (Operating)

0 Â°C to 73 Â°C

Temperature (Non-operating)

-40 Â°C to 85 Â°C

Security & Management

NVMe Specification

NVMe v2.0

OCP Compliance

OCP Datacenter NVMe SSD v2.0 support

Encryption

TCG Opal & Ruby SSCs (on SED models)

FIPS Certification

FIPS 140-3 Level 2 certifiable

More Information

Optimise hyperscale performance with the KIOXIA CM7-V Series Enterprise NVMe SSD, a high-endurance mixed-use storage solution built for the most demanding cloud and data-centre environments. Available in capacities from 1.6 TB to 12.8 TB and supporting both E3.S (7.5 mm) and 2.5‚ (15 mm) form factors, the CM7-V Series offers exceptional density, performance, and reliability for next-generation infrastructure.

Powered by PCIe 5.0 and NVMe 2.0 technology with advanced 112-layer BiCS FLASH‚Ñ¢ TLC NAND, these drives deliver up to 14,000 MB/s sequential read and 7,000 MB/s sequential write speeds, reaching 2,700 K IOPS random read performance. With 3 DWPD endurance and integrated Power Loss Protection (PLP), the CM7-V Series ensures stable, low-latency operation for continuous enterprise workloads.

Designed for AI and machine learning, virtualised environments, online transaction processing (OLTP), and high-performance computing, the CM7-V Series supports a dual-port architecture compliant with Open Compute Project (OCP) standards. It combines scalability, endurance, and reliability to deliver enterprise-class efficiency for hyperscale data centres and cloud infrastructure.
