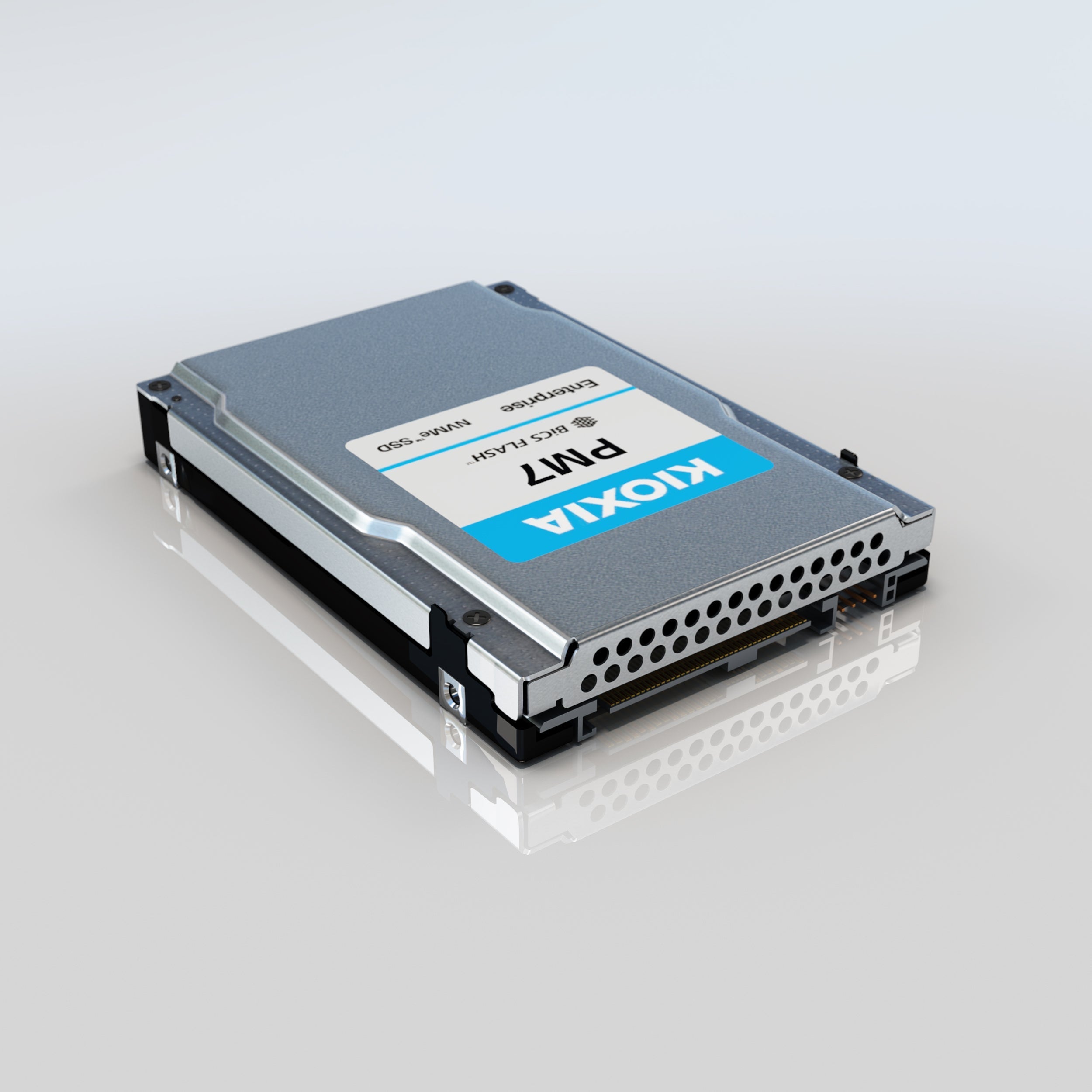

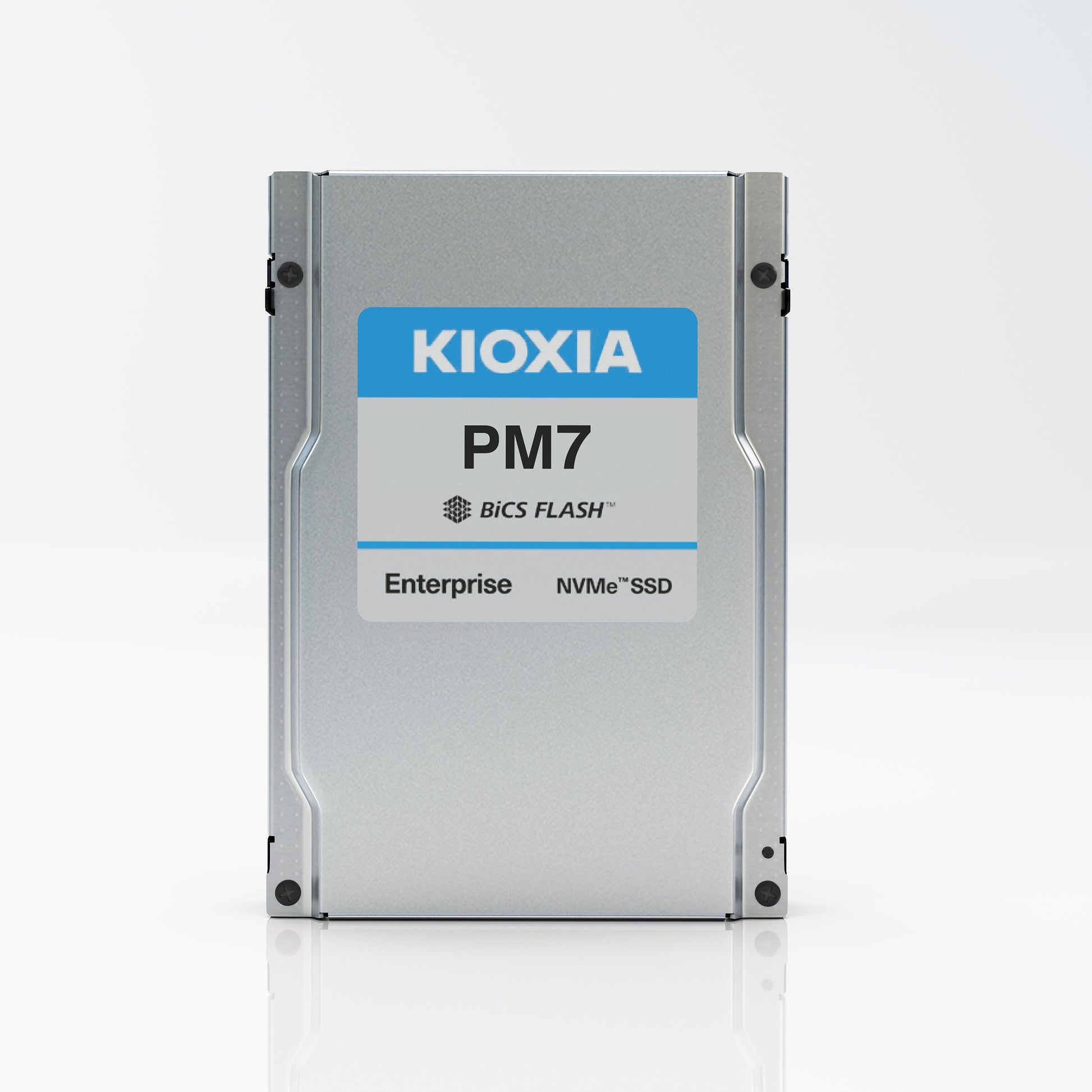

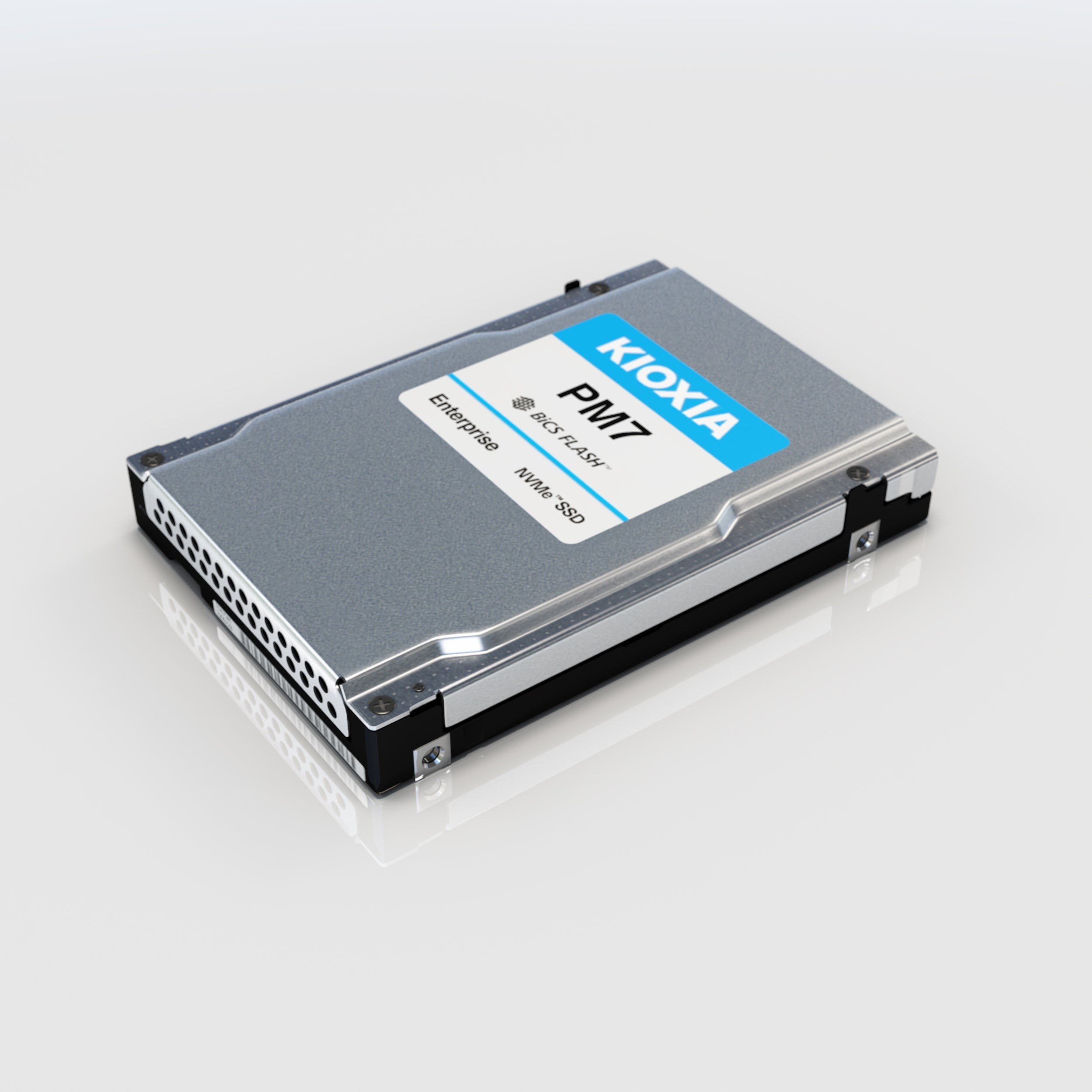

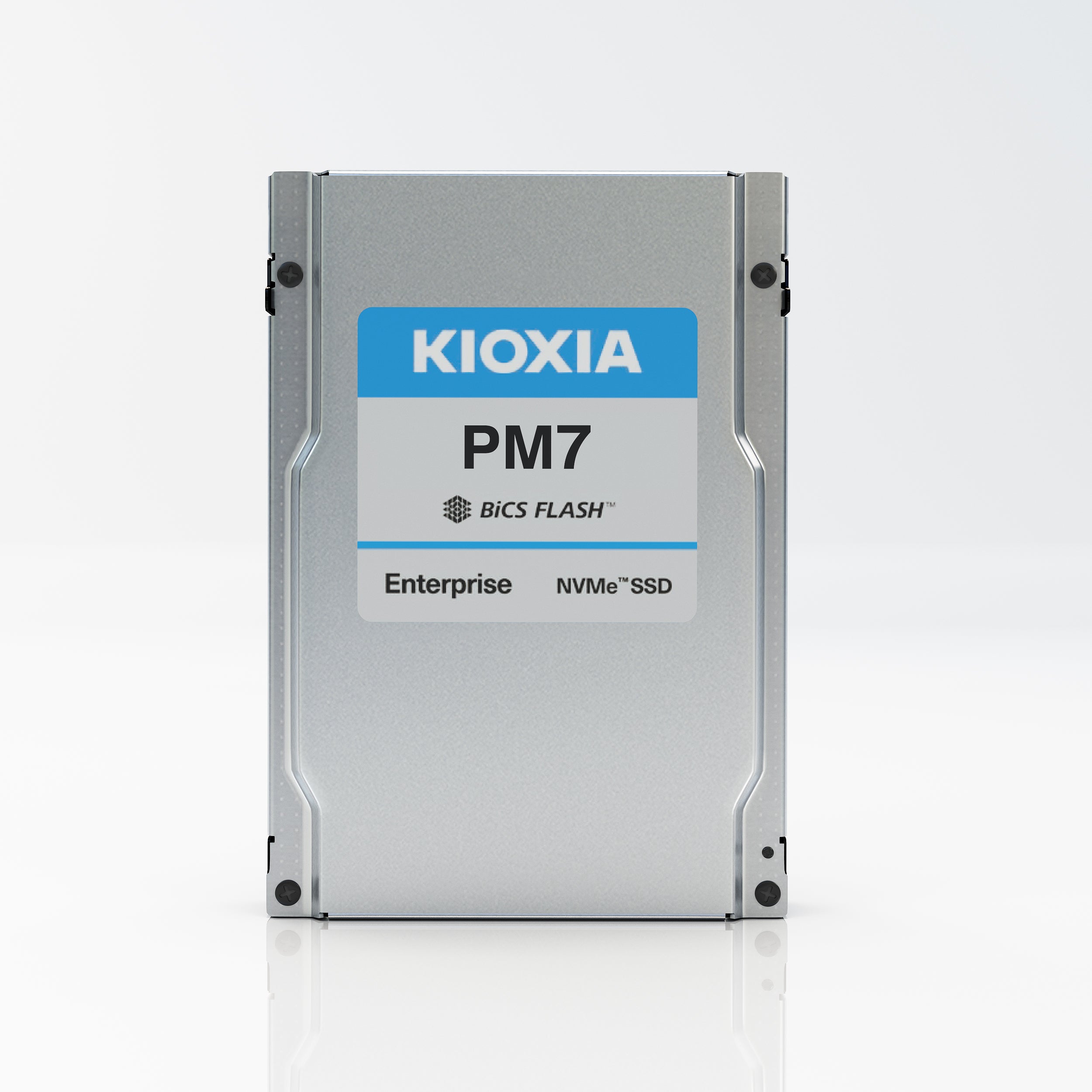

KIOXIA PM7-V 12.8TB Mixed Use SAS-4 SSD

Elevate your cloud with the KIOXIA PM7-V 12.8TB SSD, built for large-scale endurance!

KIOXIA /

1.6 TB 3.2 TB 6.4 TB 12.8 TB

U.3

Base SIE SED

متغيرات المنتج:

We won't be beaten on price. Request a quote.

Capacity

1.6 TB

3.2 TB

6.4 TB

12.8 TB

Basic Specifications

Form Factor

2.5-inch (U.3, 15 mm Z-height)

Interface

SAS-4 (24G dual-port, backward compatible with 12G/6G)

Flash Memory Type

112-layer BiCS FLASH TLC 3D NAND

Endurance Rating

Mixed-Use – 3 DWPD (5 years)

Performance (Up To)

Sequential Read (128 KiB)

4,200 MB/s

Sequential Write (128 KiB)

3,400 MB/s

3,650 MB/s

4,100 MB/s

Random Read (4 KiB)

720K IOPS

Random Write (4 KiB)

320K IOPS

340K IOPS

355K IOPS

330K IOPS

Power Requirements

Power Loss Protection

Yes (Capacitor-based PLP)

Supply Voltage

5 V (+10% / -7%), 12 V (±10%)

Power Consumption (Ready)

5 W (typical)

Reliability / Endurance

DWPD (5-year)

3.0

MTTF

2,500,000 hours

Warranty

5 years

Dimensions

Form Factor

2.5-inch (U.3)

Height

15.0 mm (+0 / -0.5 mm)

Width

69.85 mm (±0.25 mm)

Length

100.45 mm (Max)

Weight

150 g (Max)

Environmental

Temperature (Operating)

0 °C to 70 °C

Humidity (Operating)

5% R.H. to 95% R.H.

Vibration (Operating)

21.27 m/s² (2.17 G, 5–800 Hz)

Shock (Operating)

9.8 km/s² (1,000 G, 0.5 ms)

Security & Management

SIE Option

Sanitize Instant Erase (Crypto Erase)

SED Option

TCG Opal & Ruby SSC

SED FIPS Option

FIPS 140-2 / 140-3 Level 2 compliant

Encryption

AES-256 hardware encryption

More Information

Transform your enterprise storage with the KIOXIA PM7-V Series Enterprise SAS SSD, engineered for high-endurance mixed-use workloads in modern data centres. Available in capacities from 1.6 TB to 12.8 TB, the PM7-V Series combines exceptional reliability with next-generation performance, delivering scalable efficiency for mission-critical applications.

Powered by 24 G SAS-4 interface technology and advanced 112-layer BiCS FLASH‚Ñ¢ TLC NAND, these 15 mm 2.5‚ drives deliver up to 4,200 MB/s sequential read and 4,100 MB/s sequential write speeds, with 3 DWPD endurance and integrated Power Loss Protection (PLP) for consistent, reliable performance under heavy enterprise workloads.

Ideal for cloud deployments, virtualised environments, data warehousing, and enterprise storage, the PM7-V Series supports comprehensive data protection through Base, SIE (Sanitise Instant Erase), SED, and FIPS SED security options. Designed to extend infrastructure life while meeting next-generation storage demands, it offers superior performance, endurance, and trust for critical data-centre operations.
