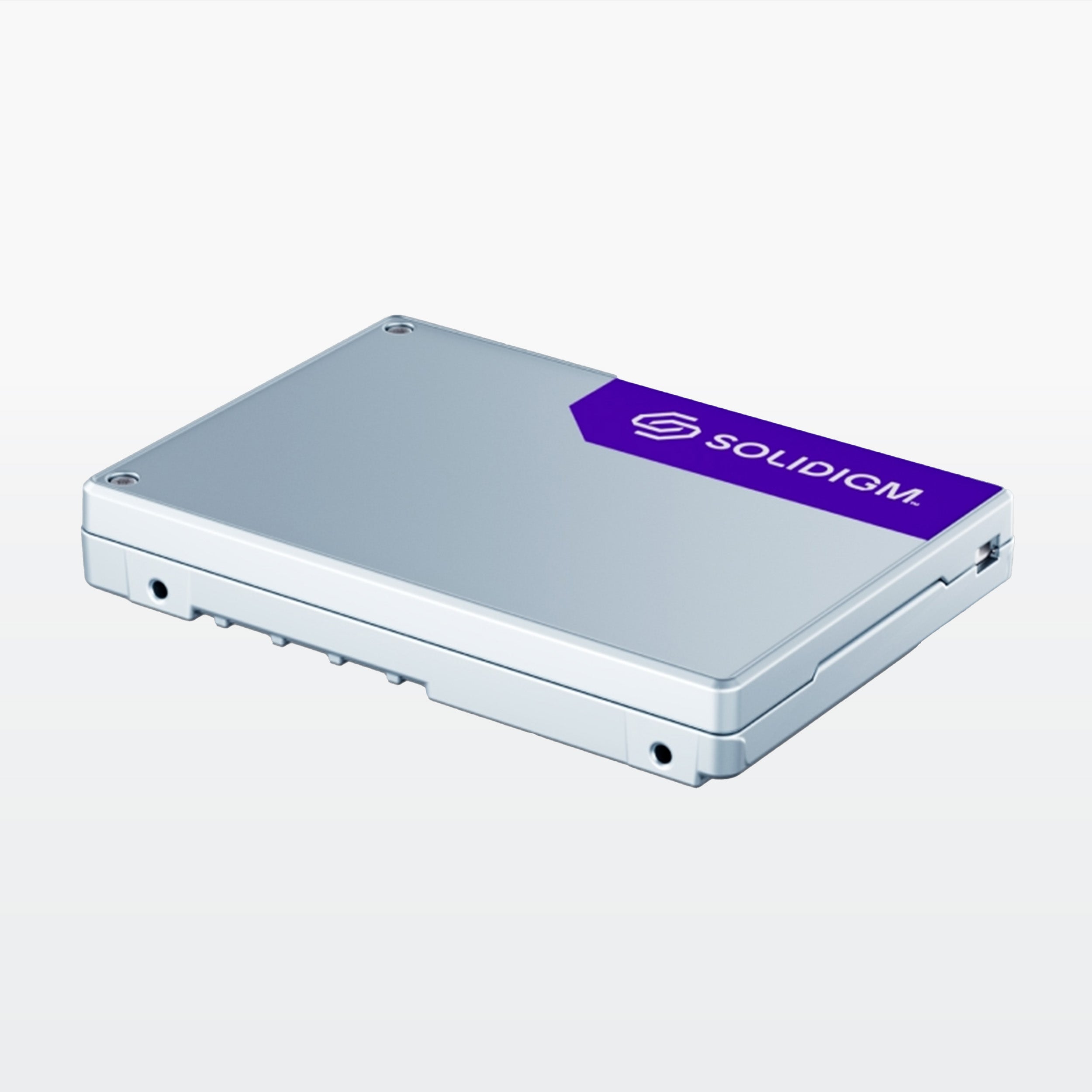

Solidigm D7-P5520 Series PCIe 4.0 NVMe SSD

High-performing PCIe 4.0 NVMe SSDs for read-intensive enterprise workloads
Solidigm /
We won't be beaten on price. Request a quote.
In Stock
View Product Brochure
Capacity 1.92 TB 3.84 TB 7.68 TB 15.36 TB
Basic Specifications
Form Factor U.2 15mm
Interface PCIe 4.0x4
Flash Memory Type 144-Layer TLC 3D NAND
Endurance Rating Standard - 1 DWPD
Performance (Up To)
Sequential Read 5,300 MB/s 6,700 MB/s 7,100 MB/s 7,100 MB/s
Sequential Write 1,900 MB/s 3,600 MB/s 4,200 MB/s 3,700 MB/s
Random Read (4K) 700K IOPS 1000K IOPS 1100K IOPS 1000K IOPS
Random Write (4K) 114K IOPS 200K IOPS 220K IOPS 200K IOPS
Power Requirements
Power Loss Protection Yes
Max Average Active Power 13W
Idle Power 5W
Reliability / Endurance
DWPD (5-year) 1.0
DWPD (3-year) 1.66
Total Bytes Written (5-year) 3.5 PBW 7.0 PBW 14.0 PBW 28.0 PBW
Warranty 5 years
MTBF 2,000,000 hours
UBER 1 sector per 10^17 bits read
Dimensions
Form Factor U.2 (2.5-inch)
Thickness 15 mm
Environmental
Temperature (Operating) 0°C to 70°C
Temperature (Non-operating) -40°C to 85°C
Security & Management
NVMe Specification NVMe v1.4
OCP Compliance OCP Cloud SSD Spec 2.0 compliant
Encryption TCG-OPAL Version 2.01
FIPS Certification FIPS 140-2 Level 2 validated

More Information

High-performing, standard-endurance PCIe 4.0 SSDs with capacities up to 15.36TB, designed for read-intensive workloads.

PRODUCT HIGHLIGHTS

Fast, efficient, and reliable performance.

Ultra-Fast PCIe® 5.0 Speeds

Enjoy faster data transfer and system responsiveness.

Lower Power, High Efficiency

Delivers strong performance with reduced energy use.

24x7 Enterprise Reliability

Built to withstand constant, demanding workload environments.
